Large infrastructure projects often involve the construction of reinforced concrete walls under challenging site conditions. Unlike typical building structures, infrastructure walls are frequently built along transportation corridors, against excavation support systems, or within confined construction environments. Under these circumstances, conventional two-sided formwork systems are often impractical. Formwork solutions must be able to resist fresh concrete pressure safely while providing stable working platforms and efficient installation cycles.

The Sampmax MegaZ system is designed to meet these requirements, offering versatile cantilever and single-sided wall formwork solutions, which can be combined with large and small panel formwork to adapt to a wide range of construction conditions.

Typical Challenges in Infrastructure Wall Construction

Concrete wall construction in infrastructure projects presents several technical challenges:

a. Limited access behind walls, particularly along slopes or transportation corridors

b. Walls cast against excavation support systems such as diaphragm walls or sheet piles

c. Tall wall structures requiring staged concrete pours

d. High reinforcement density, increasing concrete pressure and placement difficulty

e. Restricted construction space in urban or underground environments

To address these challenges, cantilever and single-sided formwork systems are widely adopted. These systems transfer loads through structural brackets anchored to previously cast concrete, allowing safe and stable wall construction even under constrained site conditions. Depending on project requirements, these support structures can be combined with H20 beam formwork, large panel formwork, or small panel formwork systems.

Formwork Types and Applications

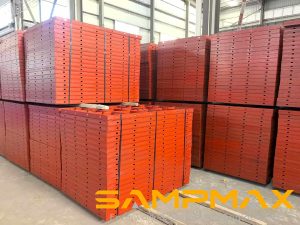

1.Small Steel Panel Formwork

Applications: Metro station boxes, cut-and-cover tunnels, underground transportation corridors, utility and service tunnels, industrial walls.
Benefits: Lightweight and flexible, allowing installation in confined spaces where crane access is limited. Ideal for curved or complex structures, small panels simplify handling and reduce labor costs while maintaining concrete quality.

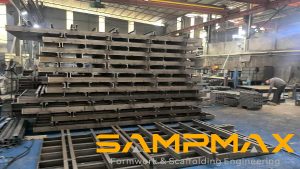

2.Large Steel Panel Formwork

Applications: Bridge abutments, foundation walls for infrastructure structures, retaining walls, industrial and water infrastructure tanks, reservoirs.
Benefits: Covers large wall areas efficiently, reduces joints and assembly cycles, improves surface finish, and accelerates construction for large standardized or repetitive structures.

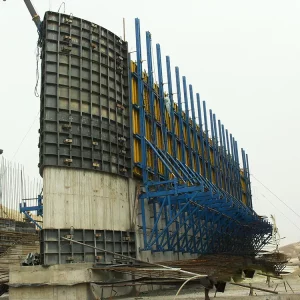

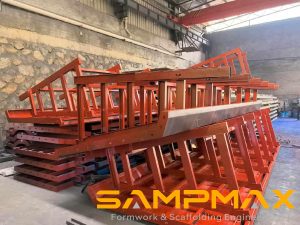

3.Single-Sided Wall Formwork

Applications: Retaining walls along highways and railways, river retaining walls, basement walls, tunnel entrance walls, walls cast against soil or diaphragm walls.
Benefits: Designed for situations where the opposite side of the wall cannot support formwork. Heavy-duty brackets anchor to foundations or base slabs, allowing safe casting of medium-height walls and long linear sections along transportation corridors. Installation is efficient even in restricted spaces.

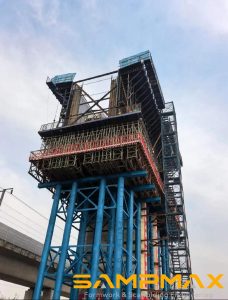

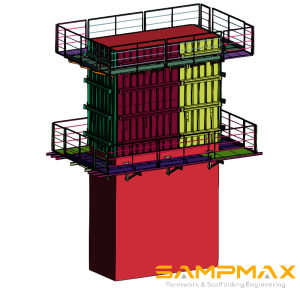

4.Cantilever Formwork

Applications: Tall retaining walls, bridge approach structures, bridge piers, chimneys, industrial overhanging structures.
Benefits: Supports high walls and overhanging structures safely. Mounted on climbing brackets or working platforms, cantilever systems can be repositioned after each pour. Combined with large panel formwork, this staged construction method provides safe working platforms, efficient construction of tall structures, and precise control over concrete placement.

Infrastructure Scenarios

1.Medium-Height Retaining Walls (3–8 m)

For walls along highways or railway corridors, the rear side is usually in contact with soil, leaving no space for two-sided formwork. Single-sided wall formwork anchored to the base slab or foundation is widely used. In many projects, these systems are combined with large panel or H20 beam formwork, enabling efficient casting of long, continuous wall sections.

2.Tall Retaining Walls and Bridge Approach Structures (8–10+ m)

Walls exceeding 8–10 meters are often constructed in multiple stages. Cantilever or climbing formwork systems allow the formwork to move upward after each concrete pour. Combined with large panel formwork, the system allows large wall sections to be lifted and repositioned efficiently. This approach ensures safe working platforms, precise concrete placement, and reduced formwork dismantling time.

3.Bridge Abutments and Large Foundations

These reinforced concrete structures require precise alignment and high load capacity. Large panel formwork, often combined with H20 beam formwork and cantilever supports, provides dimensional stability, fewer joints, and improved surface quality for bridge abutments and foundation walls.

4.Underground Structures and Cut-and-Cover Tunnels

Walls are cast directly against excavation supports such as diaphragm walls or sheet piles. Single-sided wall formwork resists the full fresh concrete pressure from one side, while small panel formwork allows flexible installation in confined underground spaces.

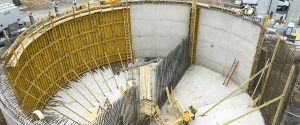

5.Water and Industrial Infrastructure

Water treatment plants, pumping stations, industrial reservoirs, and wastewater facilities often involve tall vertical walls and dense reinforcement. Cantilever support systems combined with large panel or H20 beam formwork provide stable and efficient solutions for these complex structures.

Key Advantages of the Sampmax MegaZ System

• Multi-System Compatibility: Can be used with large panel and small panel formwork, as well as H20 beam formwork, adapting to different wall sizes, construction sequences, site conditions, and project requirements.
• Cantilever and Single-Sided Solutions: Ideal for walls in confined spaces or those requiring staged concrete pours.
• H20 Beam Integration: Provides flexibility for large reinforced concrete walls and complex geometries.
• Project-Based Engineering Support: Includes formwork layout design, system configuration, and technical guidance to ensure safe and efficient construction.

By combining flexible formwork configurations, reliable support systems, and professional engineering services, the Sampmax MegaZ system delivers safe, efficient, and cost-effective solutions for wall construction in bridges, tunnels, industrial facilities, water infrastructure, and environmental projects.

Summary:
The Sampmax MegaZ system delivers versatile, high-performance formwork for complex infrastructure projects. With small and large panels, single-sided walls, cantilever supports, H20 beam integration, and engineering services, it addresses the technical challenges of modern infrastructure construction, helping contractors achieve faster, safer, and more cost-effective results.
