Shoring by Cuplock System
High Load-Bearing Strength

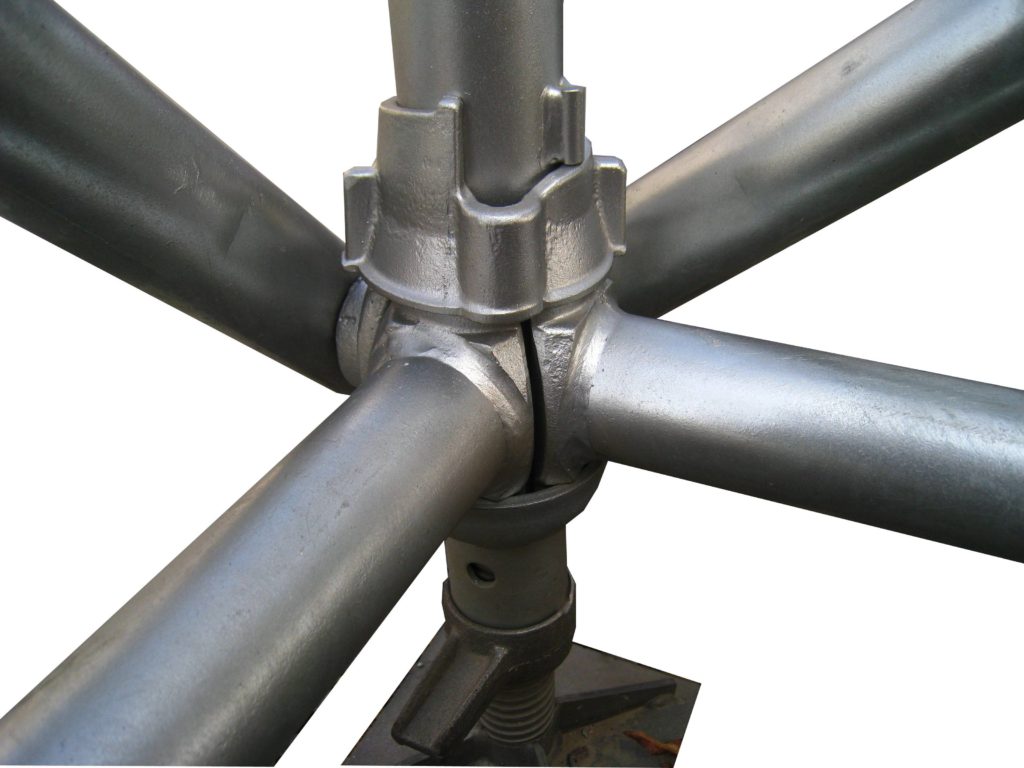

Sampmax Cuplock Shoring is built for heavy-duty performance, with each vertical leg supporting 20–50kN. The rigid cup-joint system ensures stable, high-capacity load transfer, ideal for bridge decks, industrial buildings, and heavy concrete structures.
Fast and Tool-Free Assembly
Its modular, no-bolt design allows rapid connection and disassembly, reducing setup time by 30% or more compared to conventional scaffolding. Perfect for fast-paced infrastructure or commercial projects.
Versatile for Complex Applications

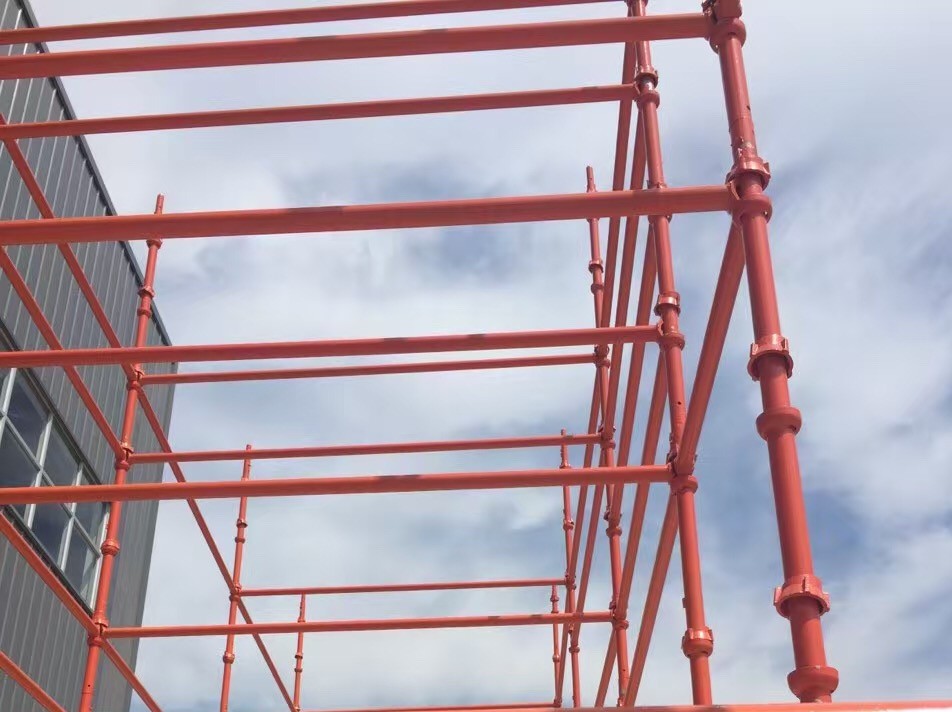

From tunnels to facades, the Cuplock system adapts to varying spans, heights, and access needs. It suits shoring, facade work, slab support, and construction in tight or irregular spaces.
Long-Lasting and Safe
Made of galvanized high-strength steel, it offers over 10 years of service life with strong corrosion resistance. The self-locking cups enhance job site safety and are compatible with guardrails and planks.
Technical Data
System Name
Cuplock Scaffolding
Components

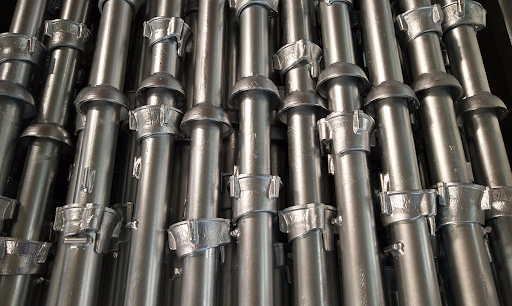

Vertical Standards/Horizontal Ledgers/Diagonal Braces/Cup Joints/Accessories
Raw Material
Steel Q235
Standard
EN12810/CSA/ASTM/AS1576
Max. Load Capacity
20-500kN/vertical standard
