H20 Timber Beam

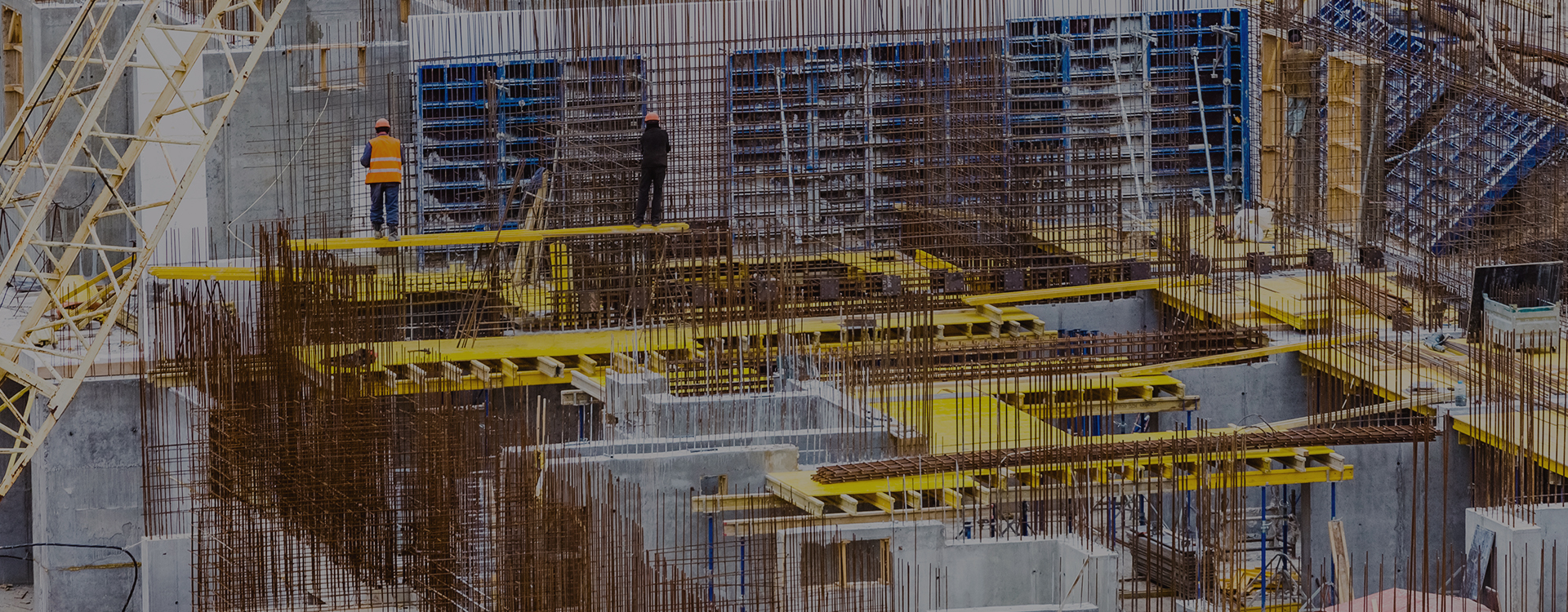

Widely used as girder for shear wall formwork, slab formwork and column formwork

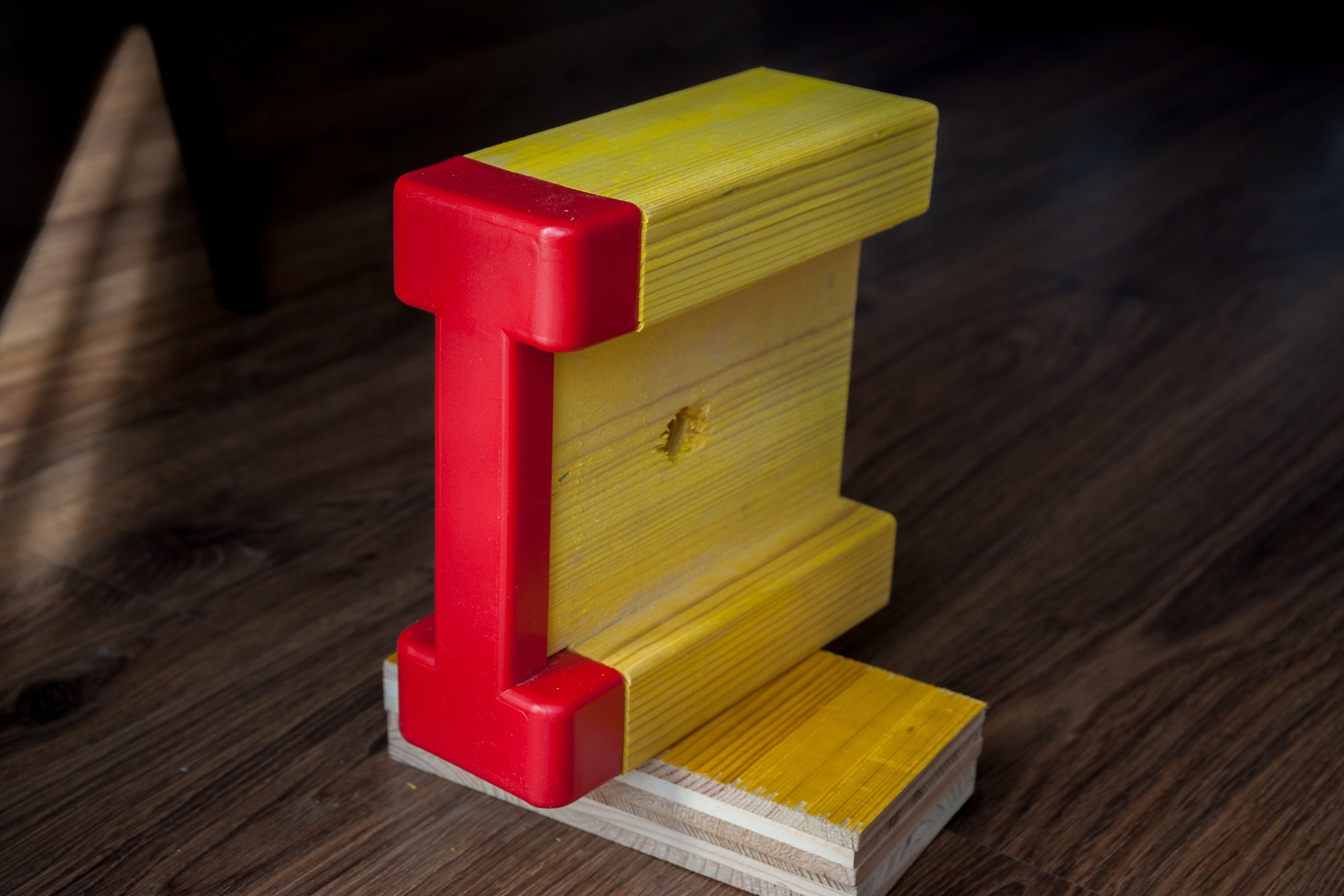

Sampmax H20 Beam is the most poplar beams which used in the slab/wall/column formwork system. It is cost-effective product with perfect modulus and shearing force permission. Sampmax H20 Beam average geometrical moment of inertia lx 4613cm4. The section modulus WX average 461cm3.

The H20 Beam has many advantages, such as strength and safety, lightness, economical and adaptability.

H20 Beam has stability demension and recovery capacity after using, It is humidity against, knocks and splintering proected

With lightweight, the H20 Beam is easy to move and assembly fast, it can be reused many times, suitable with many formwork system, like ringlock shoring, steel prop shoring and wall formwork, column formwork

Technical Data

Wood Type

Flange: Solid Spruce
Web: Poplar/Pine/Hardwood

Size

Length: 1.80m/2.45m/2.65m/2.90m/3.30m/3.30m/3.60m/3.90m/4.50m/4.90m/5.90m
Height: 200mm
Width: 80mm

Weight

4.7-4.9kg/mtr

Load Capacity

Permissionale Resistance of Shear: 11.00KN
Permissionale Resistance of Bending: 5.00KN
Permissionale Resistance of Bearing: 22.00KN

Standard

EN 13377
