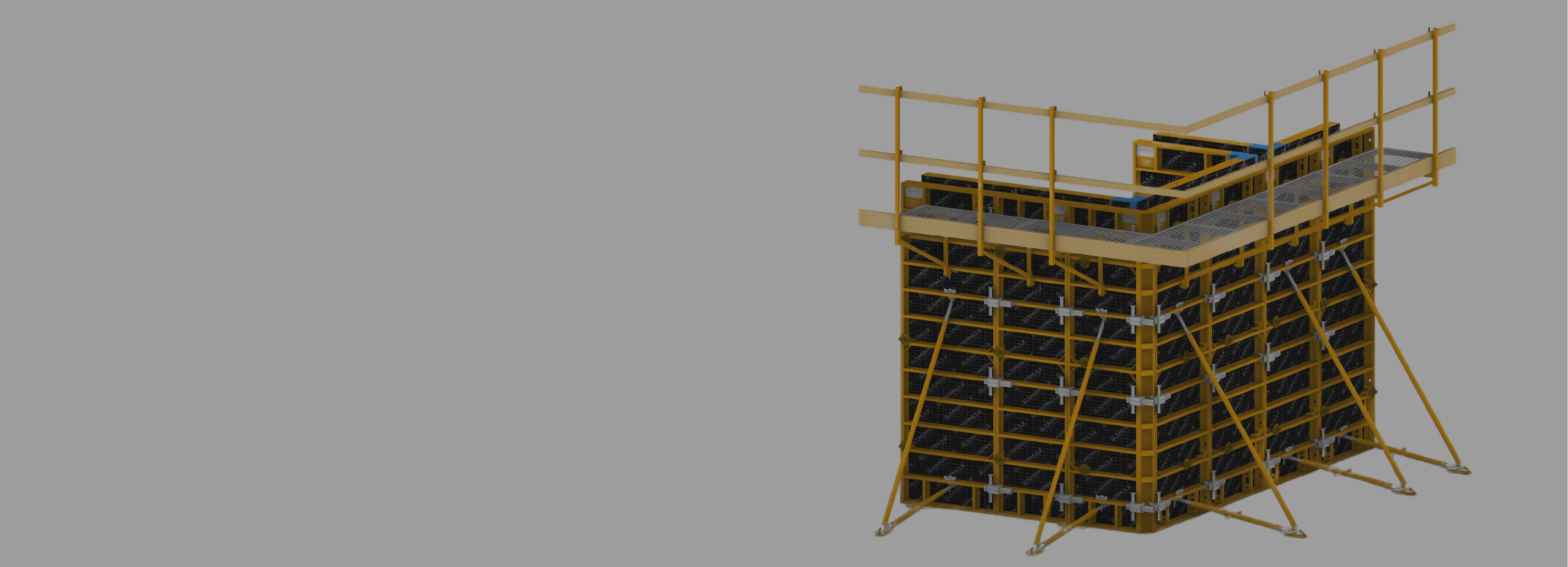

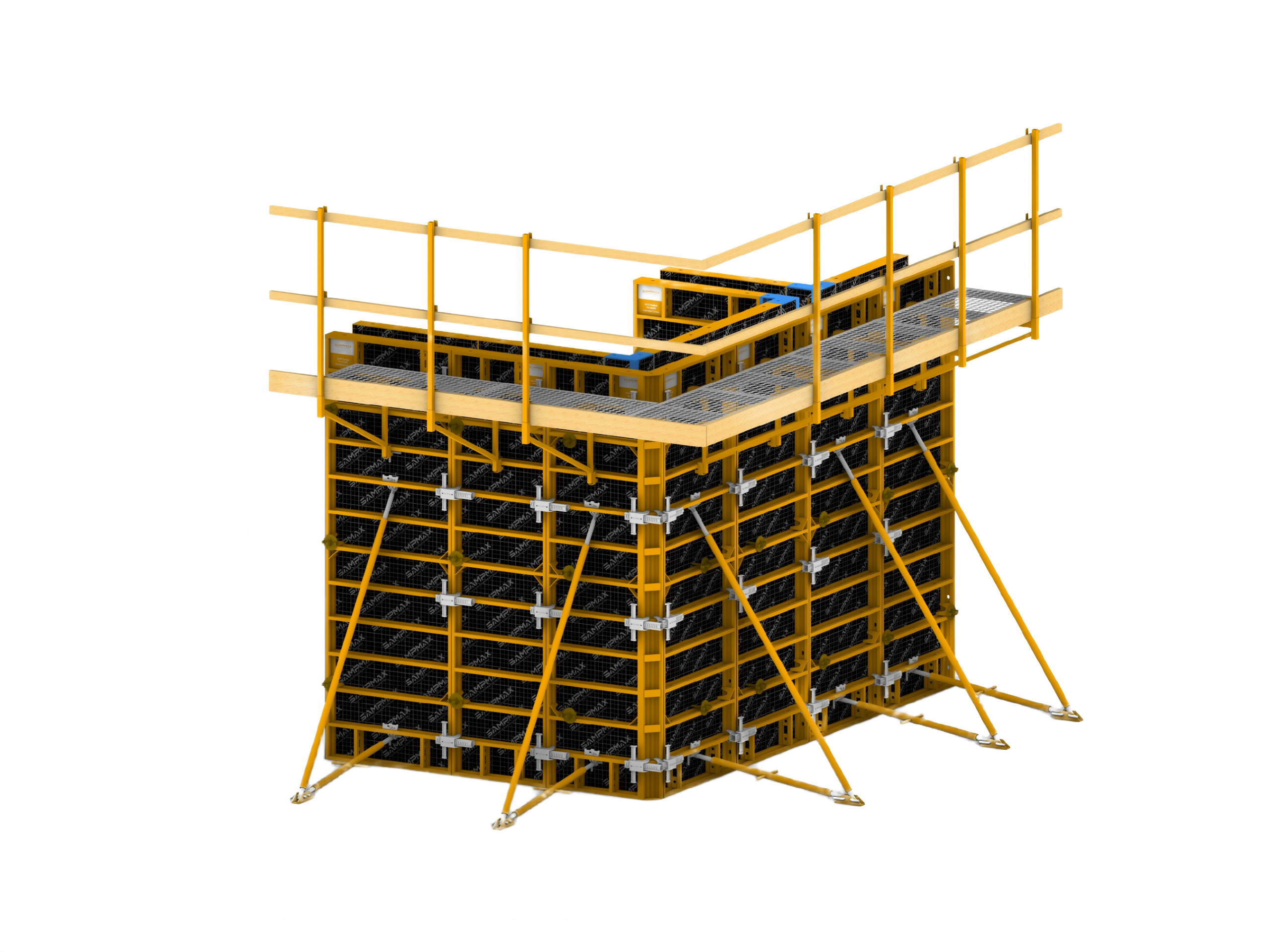

Altus is a complete aluminum wall formwork system engineered for concrete construction professionals who demand speed, precision, and long-term value. Built from 6061-T6 aerospace-grade aluminum with 15 mm birch plywood facing, it outperforms steel on weight and timber on durability — without compromising on structural integrity.
About Altus
| WHY altus |
|
Lightweight & Versatile Lightweight panels make handling and repositioning easier on site. The modular size range adapts to different wall layouts without excessive customization. One system, multiple applications. |
Fast Setup, Fast Cycles Simple connections and standardized panel logic reduce installation time. Faster assembly and stripping help accelerate floor cycles and improve project efficiency. Less downtime, more progress. |
|
High Productivity Designed for efficient wall construction with up to 90㎡ per person per day. Easy planning and quick installation help crews maintain consistent productivity across repetitive pours. Ideal for fast-track projects. |
Strong Yet Lightweight 6061-T6 aluminum frames provide reliable structural performance while keeping the system lightweight. Panels remain easy to transport and handle without sacrificing strength. Built for demanding jobsite conditions.. |
|
Durable & Cost-Efficient Powder-coated frames support hundreds of reuse cycles with reduced maintenance needs. Lower crane dependency and longer service life help improve overall project economics. Durable enough for long-term use. |
Smooth Concrete Finish Stable panel alignment helps maintain accurate wall dimensions during concrete pours. The rigid frame structure minimizes deformation and leakage. Deliver clean concrete surfaces with less rework and finishing. |
Technical Data
Formwork Type
Modular wall formwork
Raw Materials
Frame:6061-T6 Plywood :15mm Birch
Main Sizes
3000/2500/1250/750*1000/750/500/250
Weight
Panel 3000*1000mm=73.0kg
Panel 2500*1000mm=61.3kg
Panel 750*1000mm=22.5kg
Panel 2500*1000mm=61.3kg
Panel 750*1000mm=22.5kg
Relevant standards
Complies with DIN 18202
Corrosion Protection
Powder-coating
Assembly Efficiency
90SQM per Person per Day
Concrete Pressure
60kN/㎡
Related Solutions
-

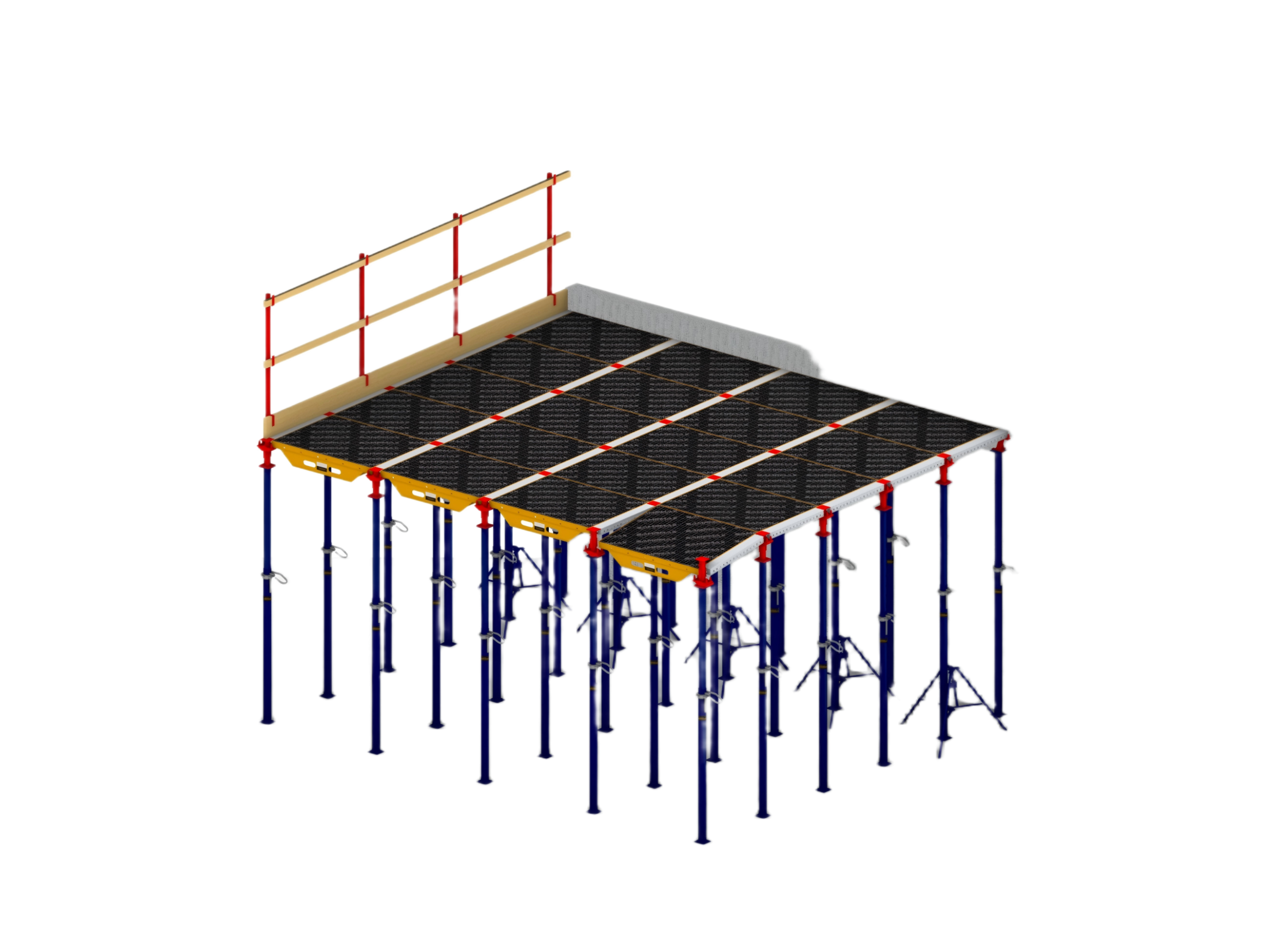

Sampmax ALTUS Slab FormworkLEARN MORE >The lightweight aluminum slab formwork system for fast, repetitive concrete floor construction.
-
